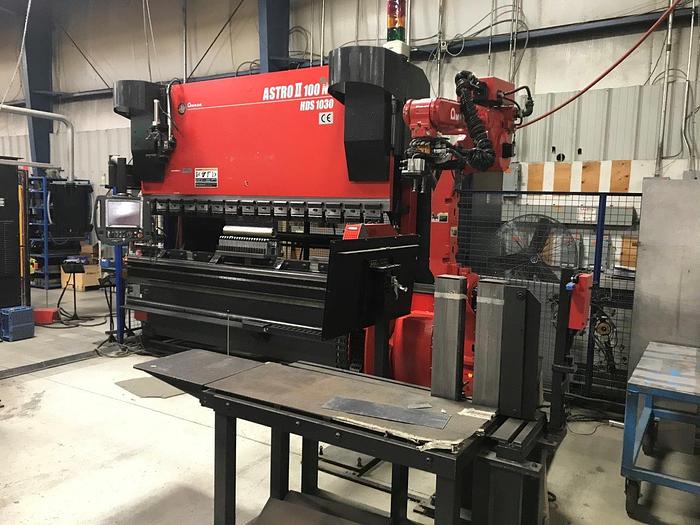

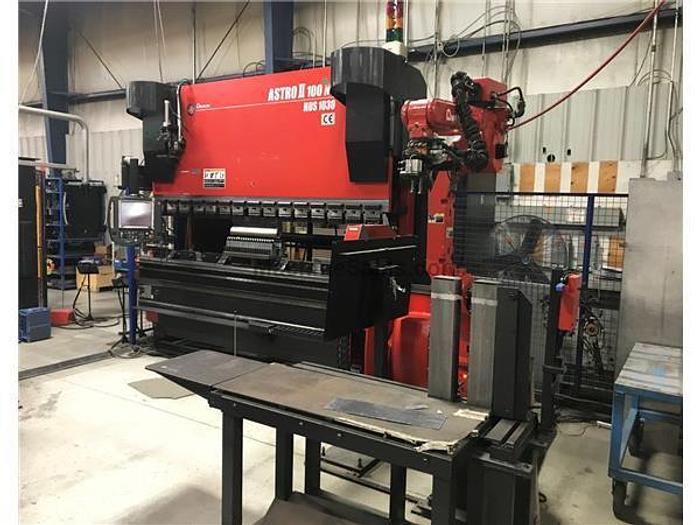

2009 110 Ton Amada Astro II 100NT HDS-1030 CNC Press Brake
No longer available
2009 110 Ton Amada Astro II 100NT HDS-1030 CNC Press Brake
Ontario, Canada
Equipped With
Amada AMNC/PC Control D1D2 Ram Depth L1L2 Backgauge Z Vertical Finger Position Y1 & Y2 Horizontal Finger Movement CC Bed Crowning 25 Bends per Program Full Set of Punch Holders
Specifications
| Manufacturer | Amada |
| Model | Astro II 100NT- |
| Year | 2009 |
| Condition | Used |
| Stock Number | 3650 |
| Capacity | 110 Tons |
| BED LENGTH | 118.11" |
| DISTANCE BETWEEN HOUSINGS | 106.3" |
| MAX STROKE LENGTH | 6.87" |
| APPROACH SPEED | 7.87" /SEC |
| BENDING SPEED | 7.87"/SEC |
| RETURN SPEED | 7.87"/SEC |
| OPEN HEIGHT | 197.7" |
| THROAT DEPTH | 13.5" |
| ROBOT ARM AXES | 5 |
| ROBOT ARM PAYLOAD | 44 LBS |
| RIB SHAPE | 11.81"x70.87"x.09" |
| WEIGHT | 20,000 LBS. |
