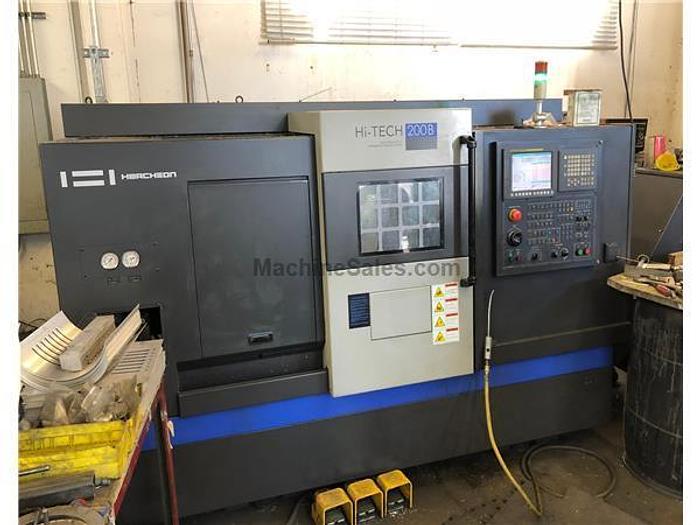

2012 Hwacheon Hi-Tech 200B CNC Turning Center
No longer available
2012 Hwacheon Hi-Tech 200B CNC Turning Center
Equipped With
Fanuc Oi-TD Control 10" 3-Jaw Chuck Tailstock Coolant Tank Chip Conveyor 12-Station Turret
Specifications
| Manufacturer | Hwacheon |
| Model | Hi-Tech 200B |
| Year | 2012 |
| Condition | Used |
| Stock Number | 3495 |
| Chuck Diameter | 10" |
| Swing Over Bed | 19.7" |
| Max Turning Diameter | 13.7" |
| Max Turning Length | 15" |
| Spindle Bore/Bar Capacity | 2.95"/2.5" |
| Z Axis | 16.93" |
| X Axis | 7.68" |
| Rapid Traverse Rates (X/Z) | 1181/1181 IPM |
| Spindle Speed | 3,500 RPM |
| Turret Positions | 12 Station |
| Overall Dimensions | 10'x6'x7'H |
| Weight (approx.) | 11,000 lbs |
