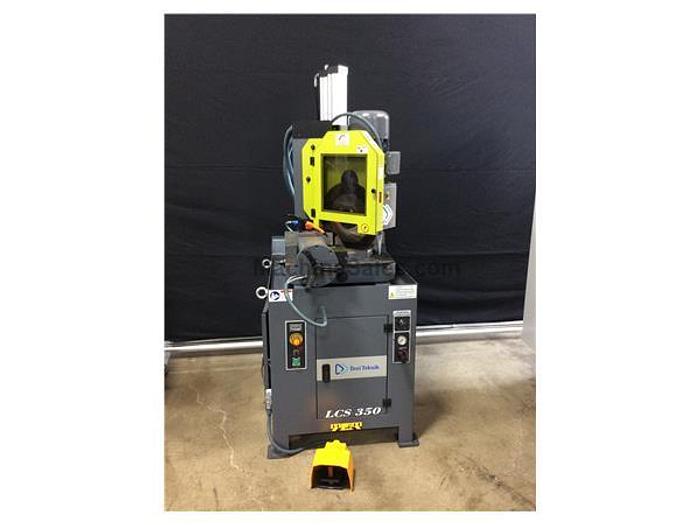

2019 Ileri Teknik Model LCS-350 Column-Type HD Circular Cold Saw (Like Scotchman)
No longer available
2019 Ileri Teknik Model LCS-350 Column-Type HD Circular Cold Saw (Like Scotchman)
Santa Ana, CA
Equipped With
Saw Blade Heavy Duty Gear Box Foot Switch Air-Operated clamp for vice Adjustable Head Stroke Electric coolant pump with tank
Specifications
| Manufacturer | Ileri Teknik |
| Model | LCS-350 |
| Year | 2019 |
| Condition | Used |
| Serial Number | 19025174 |
| Stock Number | 3472 |
| Head Swivel | 90°/ +/- 45° / =60° |
| Round | 4.33" / 4.33" / 3.54" |
| Square | 3.54x3.54"/3.54x3.54"/3.2x3.2" |
| Rectangle | 6.3x3.54"/4.7x3.15"/3.15x3.15" |
| Main Voltage | Dual Voltage – 220/440 |
| Control Voltage | 24 |
| Installed Power | 4.16 HP |
| Nominal Current | 7.6 Amps |
| Main Saw Motor | 3.22 - 4.02 HP |
| Coolant Pump Motor | .08 HP |
| Air Pressure | 6 kg/cm2 |
| Blade Speed | 36/72 RPM |
| Net Weight | 1015 lbs |
| Machine Dimensions | 39.4" x 31.5" x 71"H |
| Max Saw Blade Size | 13.78" / 14.57" |
