8' x 8 ga. GMC HBR-0808 3-Roll Hydraulic Plate Rolling Machine
8' x 8 ga. GMC HBR-0808 3-Roll Hydraulic Plate Rolling Machine
Location:Santa Ana, CA
or
Call (714) 545-0940
Equipped With
Standard Included Equipment
- LED indicator for bending roll position
- Safety line all around the machine for emergency stop
- Removable safety foot pedal and tool box
- Cone attachment (to make cone parts)
- (3) grooves 3/8”, ½”, 5/8” on roll for bending wire
Standard Features
- ISO 9001 certified
- All three rollers are driven
- All three rollers are hardened, up to 50-52 HRC
- Easy swing –out top roller
- Standard cone attachment installed
- 1 each LED indicator for bending roll position
- Safety line all around the machine for emergency stop
- Heavy Duty all steel welded machine construction
- German Hydraulic logic system centrally located and quiet
- Bending roll is hydraulic powered up/down & tilting adjustment
- Planetary reduction gear and pump
- All three rolls are made of high grade alloy steel
- All rolls run forward and reverse
- Safety type foot pedal control
- Overload protection and disconnect switch
- One year industrial warranty for parts

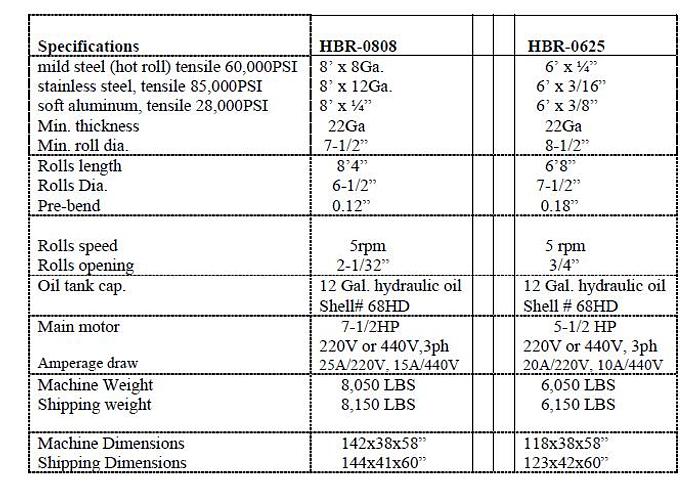

Specifications
| Manufacturer | GMC Machine Tools |
| Model | HBR-0808 |
| Condition | New |
| Stock Number | HBR-0808 |
| Product | Plate Roll, Hydraulic |
| Roll Length | 96"" |
| Capacity | 8 ga. (Mild Steel), 12 ga." (Stainless Steel) |
| Minimum Roll Diameter | 7 1/2" |
| Number of Rolls | 3 |
| Rolls Diameter | 6 1/2" |
| Pre-Bend | 0.12" |
| Rolls Speed | 3.5 RPM |
| Rolls Opening | 2 1/32" |
| Oil Tank Capacity | 12 Gallons |
| Main Motor | 7.5 HP |
| Machine Dimensions | 142" x 38" x 58" |
| Machine Weight | 8150 lbs. |
