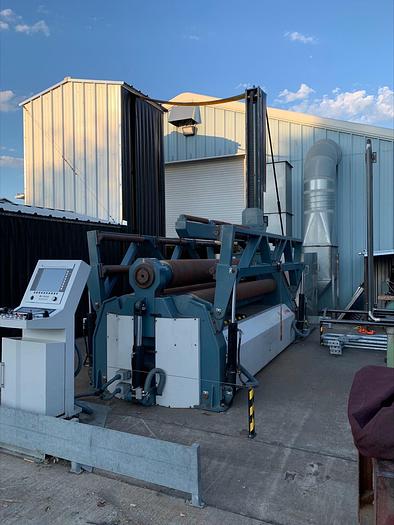

2018 - 5/8" x 10' Durma HRB-4 4 Roll CNC Hydraulic Plate Rolling Machine

2018 - 5/8" x 10' Durma HRB-4 4 Roll CNC Hydraulic Plate Rolling Machine

California

orCall (714) 545-0940

Equipped With

Equipped with:

Hydraulic Drop End

Conical Bending

Induction Hardened Rolls

2 Roll Drive System

Electronic Synchronized Rolls

Adjustable Pinching Pressure

Overload Protection

Safety Wire

Guide Arm

Support Arms


*Machine Has Very Low Hours, Surface Rust Can be Removed*


  • FEEDING ROLLS - 2 INDEPENDENT PLANETARY GEAR BOX AND HYDRAULIC MOTORS.
  • ROLLS HOUSING - SEALED SPHERICAL ROLLER BEARINGS AND BRONZE HOUSINGS
  • ROLLS MATERIAL - HIGH TENSILE CARBON STEEL C45
  • ROLLS HARDENING - INDUCTION HARDENED 54±4 HRC
  • ROLLS POSITIONING - CNC PROPORTIONAL SPEED
  • ROLLS CALIBRATING - CNC AUTOMATIC PINCHING, ADJUSTABLE HYDRAULIC PRESSURE

Specifications

ManufacturerDurma
ModelHRB-4
Year2018
ConditionUsed
Stock Number12663
Capacity5/8"
Roll Length122"
Number of Rolls4
Bending Capacity1/2"
Top Roll Diameter12.9"
Bottom Roll Diameter11/8"
Side Roll Diameter9.4"
Electrical220/440 Volts, 3 Phase
Machine Dimensions209"L x 65"W x 63"H
Weight (approx)30,000 lbs.
