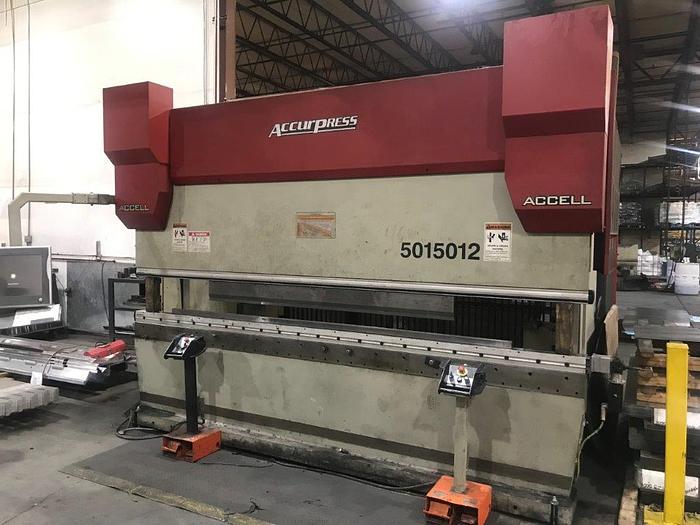

2009 - 150 Ton x 12' Accurpress Accell 5015012 CNC Hydraulic Press Brake
No longer available
2009 - 150 Ton x 12' Accurpress Accell 5015012 CNC Hydraulic Press Brake
Location:Santa Ana, CA
Equipped With
Equipped with:

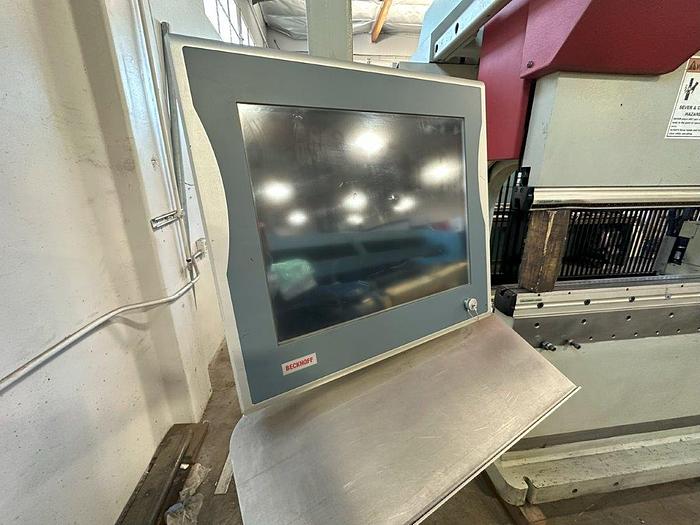

Vision Control
Hydraulic Clamping on Upper and Lower

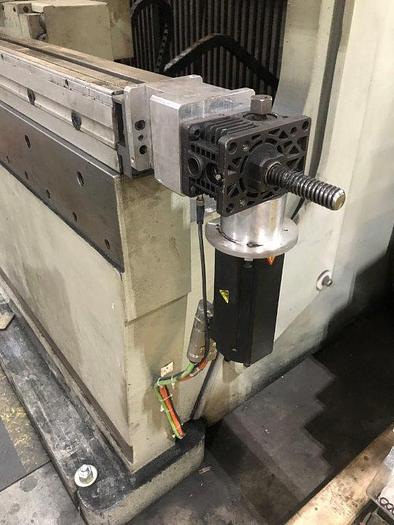

Independent Back Gauge Towers (X1, X2, R1, R2, Z1, Z2)
CNC Crowning
Dual Pedestal Controls
*Upper Clamping takes Wila New Standard tooling
*Lower Clamping takes American Style or New Standard tooling
Specifications
| Manufacturer | Accurpress |
| Model | Accell 5015012 |
| Year | 2009 |
| Condition | Used |
| Stock Number | 12590 |
| Capacity | 150 Tons |
| Length of Bed | 144" |
| Distance between end frames | 124" |
| Bed Height from Floor | 34" |
| Stroke length | 14" |
| Throat Depth | 16" |
| Open Height | 22" |
| Closed height | 8" |
| Fast Approach Speed | 540" / minute |
| Slow Bend Speed | 24-48" / minute |
| Fast Return Speed | 440" / minute |
| Electrical | 460 Volts |
| Weight | 28,000 lbs. |
| Dimensions (Approx) | 186" x 78" x 108"H |
