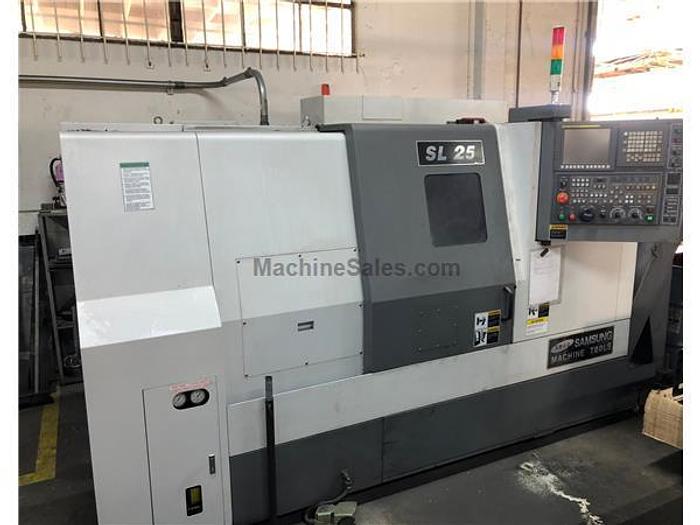

Samsung SL-25B/500 CNC Turning Center
No longer available
Samsung SL-25B/500 CNC Turning Center
Equipped With
Fanuc Oi-TD Control 10" 3-Jaw Chuck Tailstock Coolant Tank Chip Conveyor 12-Station Turret
Specifications
| Manufacturer | Samsung |
| Model | SL-25B/500 |
| Condition | Used |
| Stock Number | 3494 |
| Chuck Diameter | 10" |
| Swing | 20.5" |
| Centers | 24.6" |
| Swing Over Bed | 20.5" |
| Swing over Cross Slide | 13.8" |
| Distance between Centers | 24.6" |
| Max Turning Diameter | 14.9" |
| Spindle Bore/Bar Capacity | 3.39"/3" |
| Z Axis | 23.2" |
| X Axis | 8.66" |
| Rapid Traverse Rates (X/Z) | 709/945 IPM |
| Spindle Speed | 3,500 RPM |
| Turret Positions | 12 Station |
| Weight (approx.) | 11,000 lbs |
| Overall Dimensions | 11' x 6' x 7'H |
