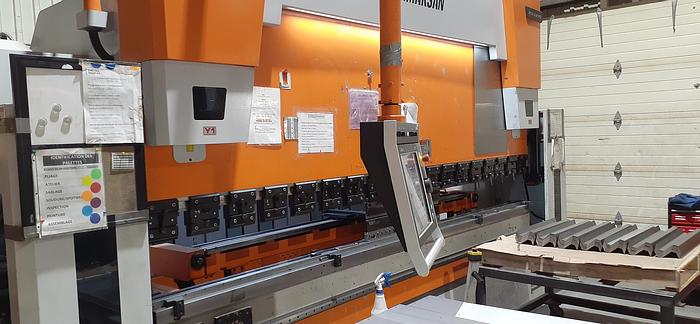

2017 - 242 Ton x 12’ Ermak Speed Bend CNC Press Brake
No longer available
2017 - 242 Ton x 12’ Ermak Speed Bend CNC Press Brake
Canada
Equipped With
Delem 66T Control
Full Set of Punch Holders
Y1,Y2,X,R,Z1,Z2 Axes
CNC Crowning
Light Curtains
Foot Pedal
Specifications
Manufacturer | Ermaksan |
Year | 2017 |
Condition | Used |
Stock Number | 12525 |
Capacity | 242 Tons |
Overall Bending Length | 148" |
Distance Between Housings | 128" |
Y Rapid Speed | 7.09" /sec |
Y Working Speed | 0.39" /sec |
Y Return Speed | 6.3" /sec |
X Axis Travel | 31.5 |
X Axis Speed | 19.7 |
R Axis Travel | 9.8 |
R Axis Speed | 13.8 |
Stroke | 10.8" |
Throat | 16.1" |
Daylight | 21.7 |
Dimensions (approx) | 224.4 x 90.6 x 106.7"H |
Weight (approx.) | 28,114 lbs. |
