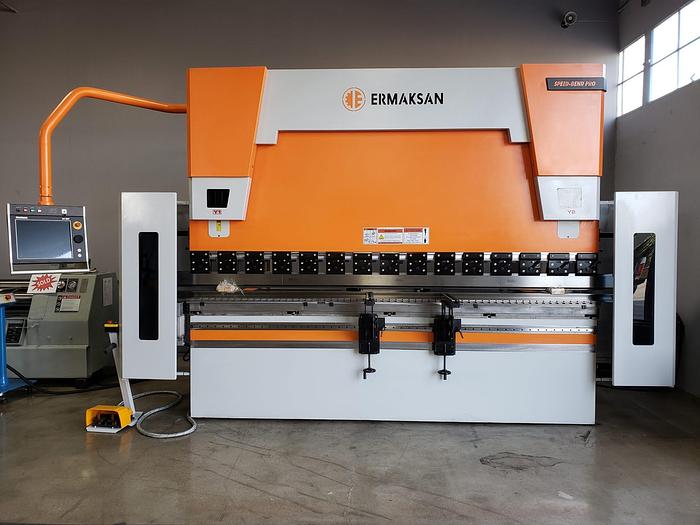

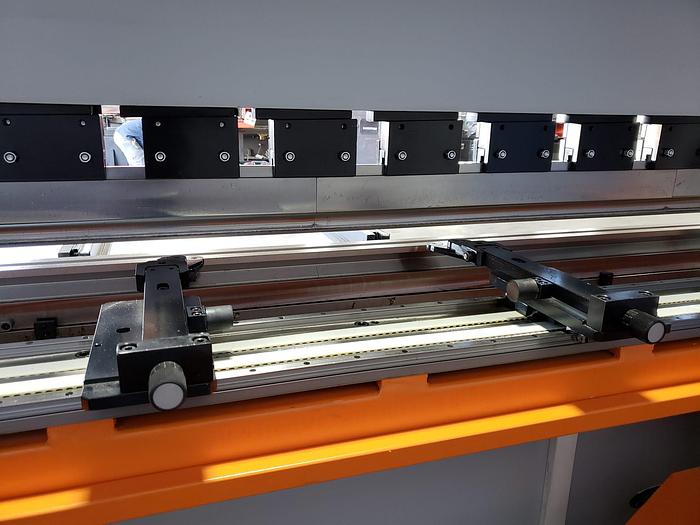

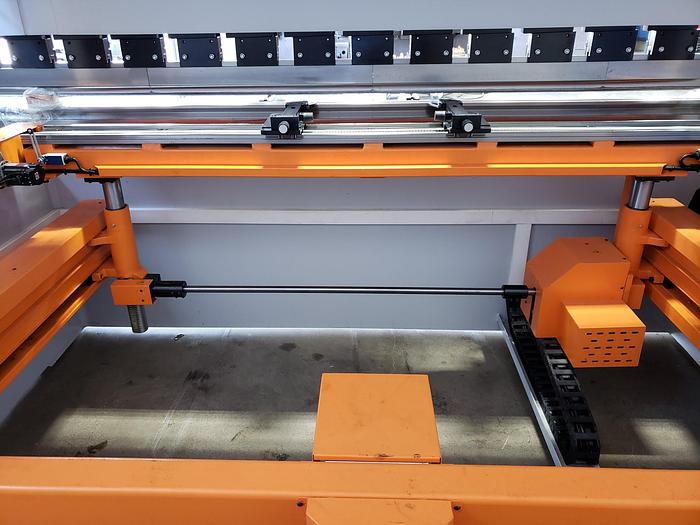

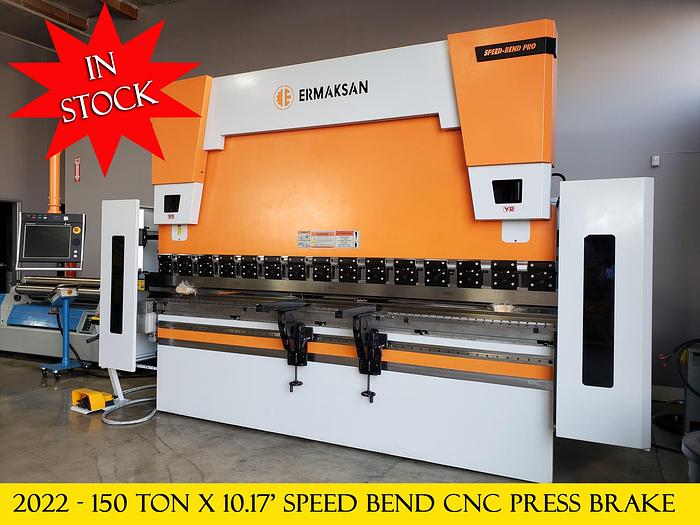

2022 150 Ton x 10.17 Ermak Speed Bend CNC Press Brake

2022 150 Ton x 10.17 Ermak Speed Bend CNC Press Brake

Santa Ana, CA

orCall 1-714-545-0940

Equipped With

** New Machinery - ETA is June 1, 2022 **


Equipped With Standard Options:

Delem 66-T CNC Touch Control

Y1, Y2, X, R, Z1, Z2 Axes

Quick Release Universal Punch Holders

Tooling Package w/ 4-way Bottom Die

Foot Pedal

CNC Crowning

Laser Safe Laser Safety Guard


Included Upgrades:

Riser Block for U.S. Dies

Dual Voltage (230/460V, 60 Hz, 3Ph)

Specifications

ManufacturerErmaksan
ModelSB 3100-135
Year2022
ConditionNew
Stock Number12496
Capacity150 Tons
Overall Bending Length122"
Distance Between Columns102.4"
Y Rapid Speed7.87
Y Working Speed.47
Y Return Speed7.48
X Axis Travel31.5
X Axis Speed19.69
R Axis Travel9.84
R Axis Speed13.78
Z1, Z2 Axes Speed39.37
Stroke10.8"
Daylight21.65"
Throat16.1"
Dimensions192.91 x 84.65 x 104.33"H
Weight18,050 Lbs.
