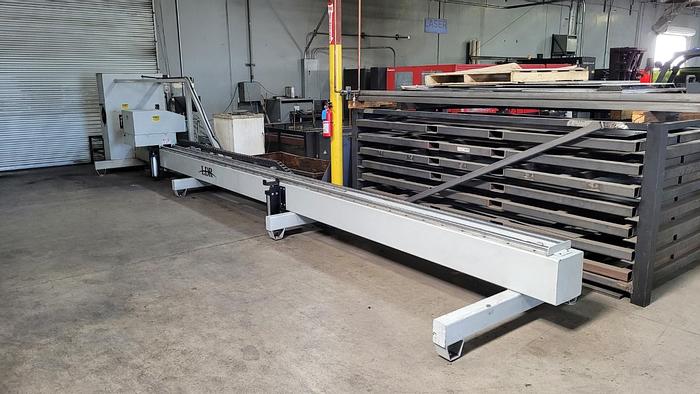

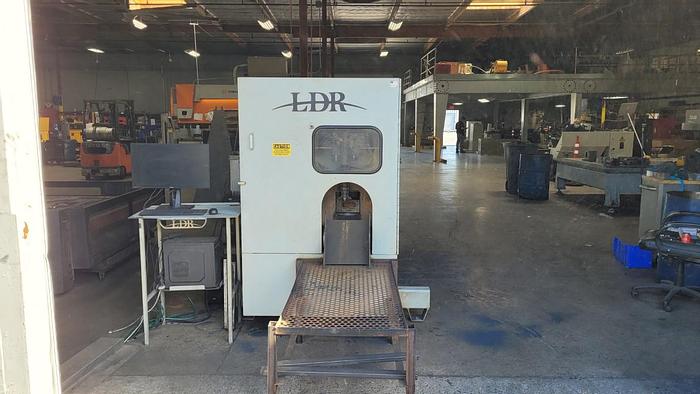

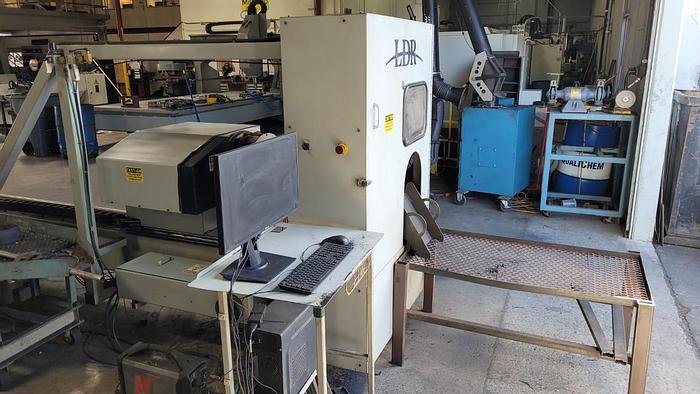

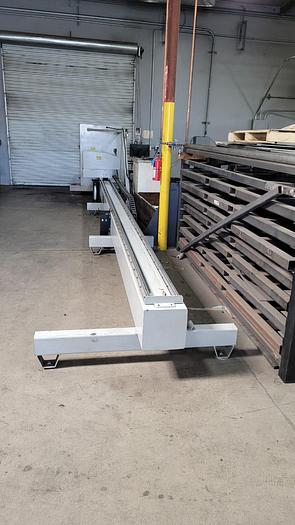

2019 LDR Plasma Tube/Pipe Cutting Machine

Structure

• Completely welded, not bolted
• Completely assembled and wired (No Assembly Required)
• Single stick autoload standard

Drive System

• Servo motors on all axis
• Precision 10:1 gearboxes on both chucks
• 5TPI ballscrew on z axis
• 20pitch 20PD gear rack and 2” pinion precision 10:1 gearbox on x axis Precision linear bearings on all axis
• Both chucks powered (eliminates vibration and twist)
• Both chucks self centering air operated
• No change over between materials
• Can cut round, square, rectangular, angle and C channel

Electronics

• Completely sealed control box
• Servos on all axis
• Simply nuc solid state computer with loaded licensed software included - Includes 22″ flat screen monitor
• simple single circular plug interface to Hypertherm unit

Software

• All software included

LDR Custom software allows 3d model generation of part via easy conversational input Also can import 3d step files from any 3rd party cad program
