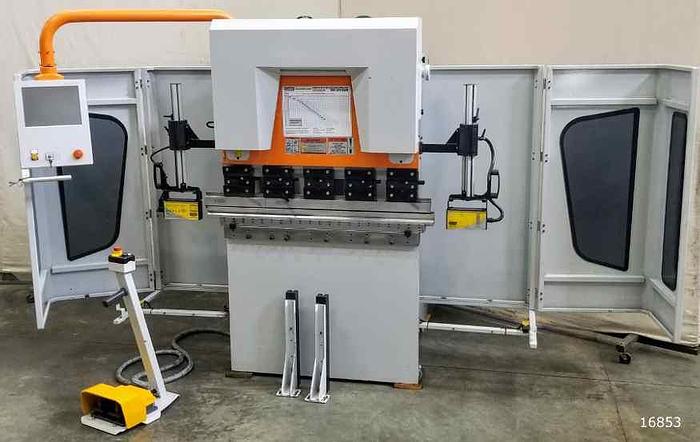

2019 44 Ton x 40” Ermak Micro Bend CNC Press Brake
No longer available
2019 44 Ton x 40” Ermak Micro Bend CNC Press Brake
Equipped With
Cybelec Touch Screen Control
Y1,Y2,X CNC Axes
Manual R1,R2,Z1,Z2 Axes
[5] Universal Punch Holders
Misc. Tooling (Sectionalized Upper Punches & Lower Dies)
[2] Sheet Support Arms
Pedestal Control
Safety Light Curtains
Dual Voltage Capability (230/460)
Specifications
Manufacturer | Ermaksan |
Model | 1000-40 |
Year | 2019 |
Condition | Used |
Stock Number | 12425 |
Capacity | 44 Tons |
Overall Bending Length | 39.37" |
Distance Between Housings | 31.49" |
Y Rapid Speed | 4.33" IPS |
Y Working Speed | .43" IPS |
Y Return Speed | 4.13" IPS |
Travel in X Axis | 19.68" |
Throat | 9.84" |
Daylight | 12.12" |
Stroke | 3.93" |
Dimensions (approx) | 91 X 77 X 74"H |
Weight (approx.) | 4,100 LBS. |
