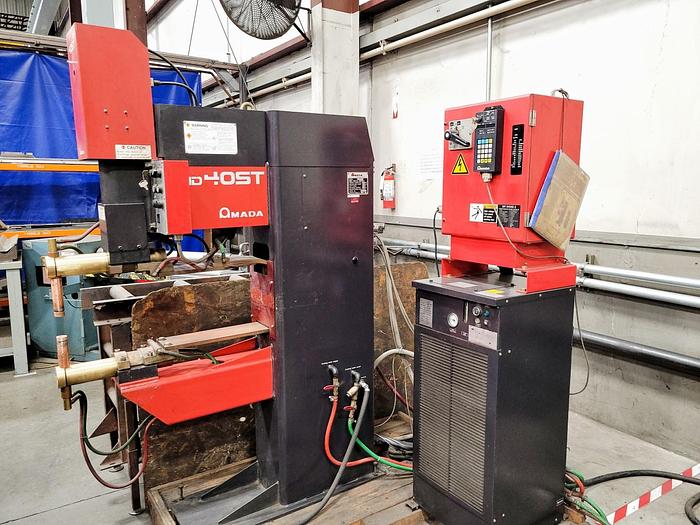

2001 Amada ID40-ST Spot Welder
No longer available
2001 Amada ID40-ST Spot Welder
Specifications
| Manufacturer | Amada |
| Model | ID40-ST |
| Year | 2001 |
| Condition | Used |
| Stock Number | 12424 |
| Rated capacity (at 50% duty cycle) | 80 kVA Power Source |
| Allowable duty cycle | 4.4% |
| Maximum rated welding current | 30,000 A Standard Throat Dimensions (gap x depth) |
| Maximum electrode force (at 0.5 mpa) | 5800 N (1320 lbf) |
| Electrode stroke | 75/25 mm (2.95.1 in. (2-step change |
| Stroke change method | Foot Switch Change Method |
| Electrode size | 16mm x mT2 (0.63 inc. RWMA #5 |
| Electrode holder arm | Upper - 70 x 350 mm (2.76 x 13.78 in.) |
| Flow rate | 10 L/min |
| Pressure | 0.155 to 0.3 MPa (21.3 to 42.7 psi) Machine Mass |
| Total mass | 450 kg (990 lb) |
