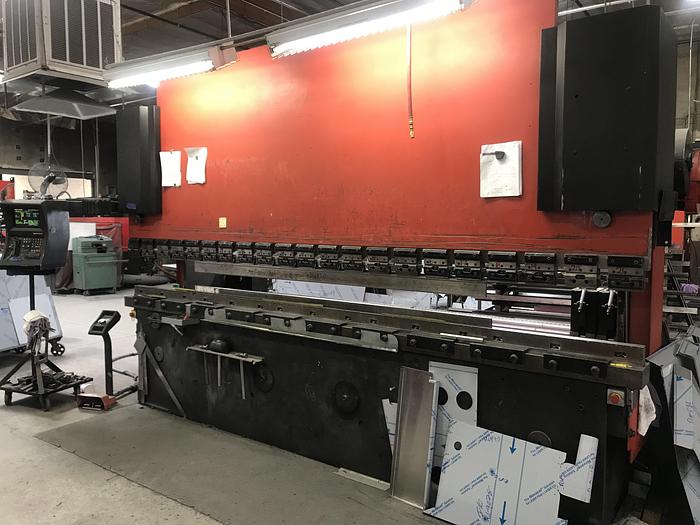

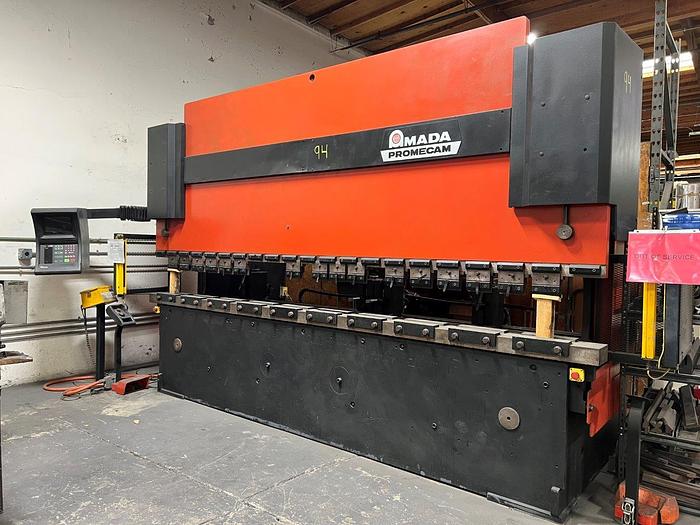

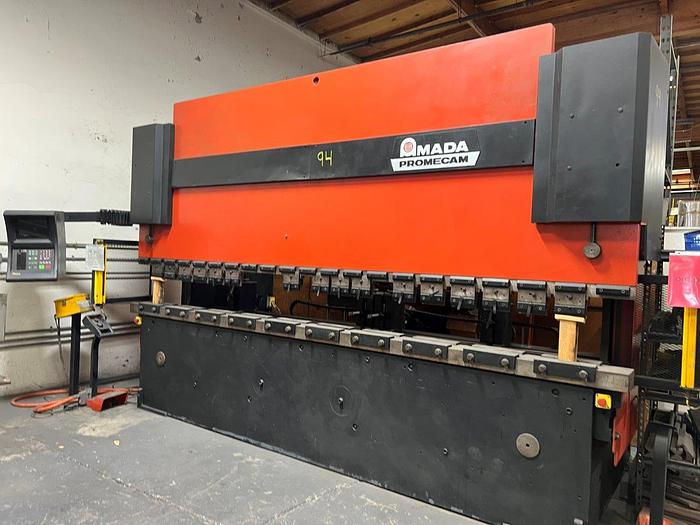

1995 138 Ton Amada HFB-1254/4 CNC Brake

Sold

1995 138 Ton Amada HFB-1254/4 CNC Brake

Equipped With

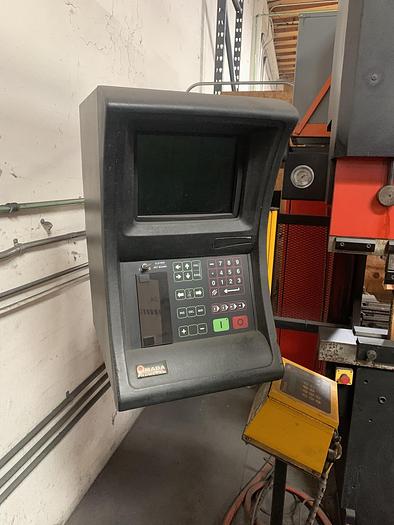

Operatuer Control

Y1 and Y2 on the Ram

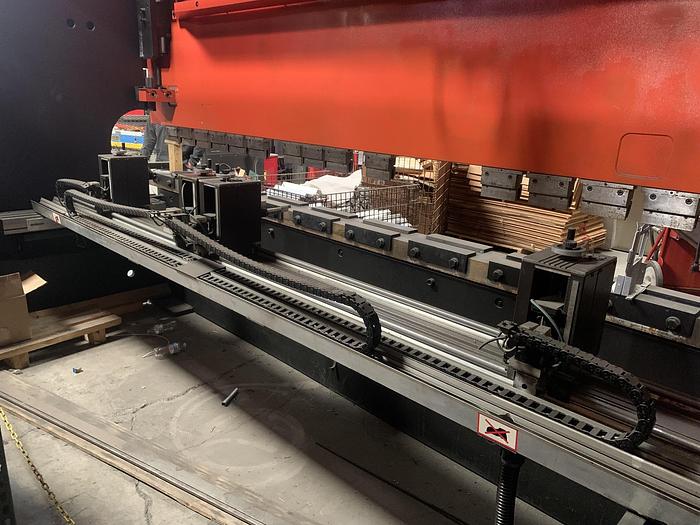

X1, X2 and R on Back Gauge

Manual Crowning

Misc. Punch Holders

Foot Pedal

Specifications

ManufacturerAmada
ModelHFB-1254/4
Year1995
ConditionUsed
Stock Number3899
Capacity138 Ton
Overall Length of Bed & Ram13'9"
Distance Between Housings12'4"
Open Height17.7"
Throat Depth16.1"
Stroke Length7"
Bending Speed (Programmable)2-23 IPM
Main Motor15 HP
Overall Dimensions (approx.)15'x8'x9.5'H
Weight (approx.)22,000 lbs.
