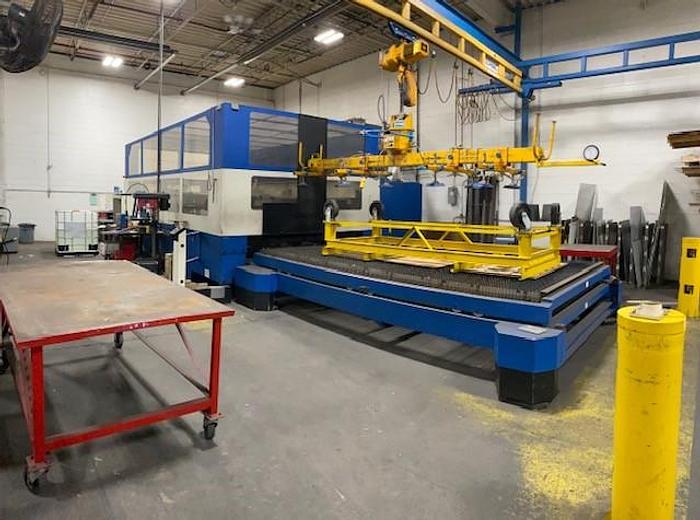

1999 3800 Watt Trumpf L-4030 CNC Laser

1999 3800 Watt Trumpf L-4030 CNC Laser

Contact us for price

Canada

orCall (714) 545-0940

Equipped With

Specifications



Resonator Wattage:                                           3800 Watt

Max Sheet Size:                                    6 x 12'

Max Workpiece Weight:                          1962 lbs

Max. Cutting Thickness Mild Steel:         .78" (20mm)

Max. Cutting Thickness Stainless:          .47" (12mm)

Max. Cutting Thickness Aluminum:         .31" (8mm)

X Axis Travel:                                       157"

Y Axis Travel:                                       79"

Z Axis Travel:                                       4.5"

Rapid Traverse Rate:                              3300 IPM

Weight:                                                35,000 lbs.







Equipped With:



Siemens Control

Trumpf TLF 3800 Turbo Resonator

Pallet Shuttle

Chiller

Dust Collector

Transformer (will run @ 460V)

Specifications

ManufacturerTrumpf
ModelL-4030
Year1999
ConditionUsed
Stock Number4040
Resonator Wattage3800 Watt
Max Sheet Size6 x 12'
Max Workpiece Weight1962 lbs
Max. Cutting Thickness Mild Steel.78" (20mm)
Max. Cutting Thickness Stainless.47" (12mm)
Max. Cutting Thickness Aluminum.31" (8mm)
X Axis Travel157"
Y Axis Travel79"
Z Axis Travel4.5"
Rapid Traverse Rate3300 IPM
Weight35,000 lbs.
