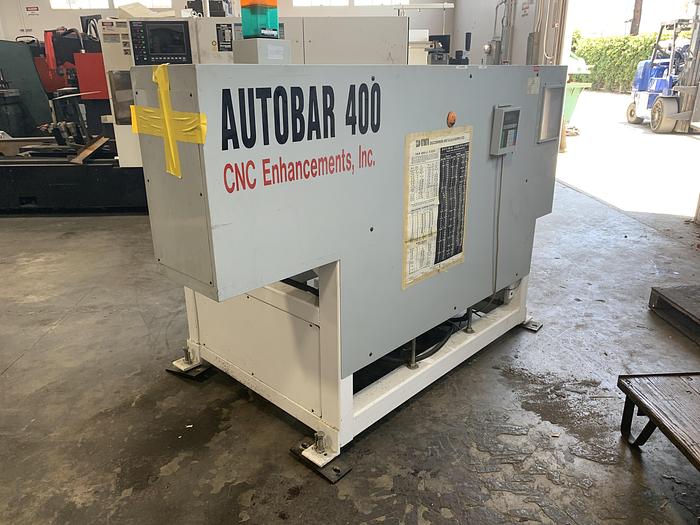

1996 CNC Enhancements AB-400 Automatic Bar Feeder

No longer available

1996 CNC Enhancements AB-400 Automatic Bar Feeder

Equipped With

Single Point Centerline Adjustment

Programmable Feed Length

Sub-Spindle Mode

Collet Stop

Ball Measurement System for Random Length Bars

Parts Counter

Status Light

Ball Screw Driven Pusher

Full Closed Loop Encoder Feed Back

[3] Pusher Bars

Spindle Liner

Adjustable Material Tray

3/4 HP Vector AC Inverter Drive

Specifications

ManufacturerCNC Enhancements
ModelAutobar 400
Year1996
ConditionUsed
Stock Number3978
Capacity.25" to 4" Diameter
Max. Bar Length60"
Material Tray Capacity[42] - 1" & [10] - 4" Dia Bar
Air Requirement80 PSI
Spindle Height28" to 55"
Dimensions (approx.)92"x65"x81"H
Weight (approx.)1,500#
